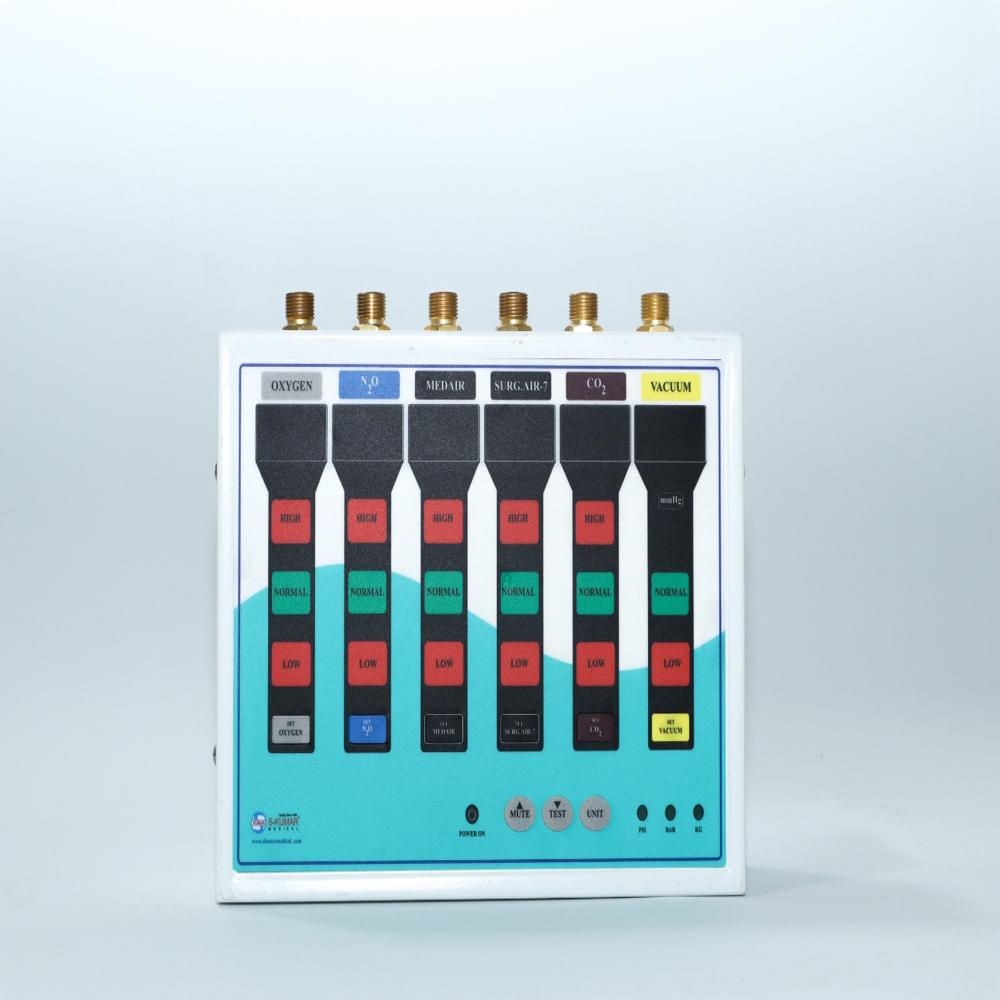

Six Gas Medical Alarm
6500.0 INR/Unit
Product Details:
- Wireless Distance Up to 100 meters (open area) with wireless module
- Alarm startup time 3 seconds
- Warranty 1 year
- Noise Level <60 dB at 1 meter
- Sensor Life > 5 years under recommended conditions
- Sensor Cable Shielded, 4-core cable, length customizable
- Alarm time Continuous, until reset or abnormality clears
- Click to view more
X
Six Gas Medical Alarm Price And Quantity
- 1 Unit
- 6500.0 INR/Unit
Six Gas Medical Alarm Product Specifications
- 230V AC, 50Hz
- > 5 years under recommended conditions
- <60 dB at 1 meter
- 24V DC (internal circuit)
- Continuous, until reset or abnormality clears
- Supports remote panel connection capability
- <200 mA
- Shielded, 4-core cable, length customizable
- Optional wireless module available
- Up to 200 meters with shielded cable
- High (Red), Normal (Green), Low (Red), with independent indicators for each gas
- Up to 100 meters (open area) with wireless module
- white
- 3 seconds
- <50 mA
- 1% deviation from standard gas pressure
- Configurable high/low limits (factory programmed)
- 0-100% for all monitored gases (O2, N2O, Med Air, Surg. Air-7, CO2, Vacuum)
- Industry
- 1 year
- Integrated pressure transducers for Medical Gas detection
- Compatible with most standard Medical Gas Pipeline Systems
- Wall-mount or flush-mount options
- Visual and audible alarms, with relay output for remote signalling
- LED alarm indicators for each gas channel
- 95% RH, non-condensing
- Powder coated mild steel with IP-54 protection
- 12 months from date of installation
- Self-test mode available
- Manual mute button for audible alarm
- Approx. 300 mm x 250 mm x 90 mm (WxHxD)
- Six (Oxygen, Nitrous Oxide, Medical Air, Surgical Air-7, Carbon Dioxide, Vacuum)
- 0C to 50C
Six Gas Medical Alarm Trade Information
- 20 Unit Per Week
- 3 Days
- No
- Contact us for information regarding our sample policy
- All India
Product Description
We are a leading manufacturer of Medical Equipments. We provide aMedical gas alarm systemwith best quality.We have single-gas, 2-gas, 3-gas, 4-gas, 5-gas, and 6-gas Medical alarm system. the mentioned rate is single gas. price are variable by numbersComprehensive Gas Channel Monitoring
Monitor six essential medical gases simultaneously, receiving real-time feedback through independent LED indicators for each channel. The system's configurable high and low limits (factory set) and fast alarm activation ensure timely detection of abnormalities, safeguarding both patients and medical staff in clinical settings.
Robust Safety Features and User Controls
Visual and audible alarms are engineered for continuous notification until the issue is resolved, while the manual mute feature allows users to silence alerts if necessary. The system's self-test mode enables regular functionality checks, reinforcing operational reliability across usage scenarios.
Flexible Installation and Integration
Designed for wall or flush mounting, the alarm fits seamlessly into various medical environments. Its compatibility with most standard medical gas pipeline systems, combined with support for remote panels and optional wireless communication, offers adaptability for both new installations and retrofits in hospitals and clinics.
FAQ's of Six Gas Medical Alarm:
Q: How does the Six Gas Medical Alarm detect abnormalities in gas supply?
A: The alarm employs integrated pressure transducers for each monitored gas channel, providing precise detection of deviations as small as 1% from the standard gas pressure. This ensures immediate recognition of abnormal conditions, triggering visual and audible alarms for prompt response.Q: What gases can be monitored with this alarm system?
A: This device simultaneously monitors Oxygen, Nitrous Oxide, Medical Air, Surgical Air-7, Carbon Dioxide, and Vacuum. Each gas channel has independent alarm indicators for high, normal, and low-pressure levels.Q: Where can the Six Gas Medical Alarm be installed?
A: Featuring flexible mounting options, the alarm can be wall-mounted or flush-mounted in hospital wards, operation theaters, or medical gas service panels. It is compatible with most standard Medical Gas Pipeline Systems, making it suitable for various clinical environments.Q: What is the process for muting an alarm during operation?
A: Users can silence the audible alarm by pressing the manual mute button while the visual indicator remains active until the abnormality is resolved. This allows medical personnel to manage alerts efficiently without missing critical warnings.Q: When should the system's self-test feature be used?
A: It is recommended that operators run the self-test mode during routine maintenance or after installation to verify that all channels and alarm systems are functioning correctly. Regular testing helps maintain optimal reliability and ensures patient safety.Q: What are the benefits of using the remote panel connection capability?
A: The remote panel feature allows monitoring and control from a distance of up to 200 meters with shielded cable or 100 meters wirelessly (open area). This offers enhanced flexibility in large facilities, ensuring timely response even from remote locations within the premises.Q: What kind of warranty and support does the manufacturer provide?
A: The Six Gas Medical Alarm comes with a 12-month manufacturer warranty from the installation date. Users benefit from technical support and replacement coverage for manufacturing defects during the warranty period.Tell us about your requirement
